Accueil > Cubicles > Footless Opale cubicle

Footless Opale cubicle


References : sans pied, statifié massif 10 ou 13 mm

 Print Print






Easy maintenance and cleaning : this is what defines the Opale cubicles. Without feet, up to 4.8 meters, they allow easy maintenance and lead to a perfect hygiene.

10 mm or 13 mm SGL possible.



 See specifications and overiew of a standard cubicle



 Standard dimensions

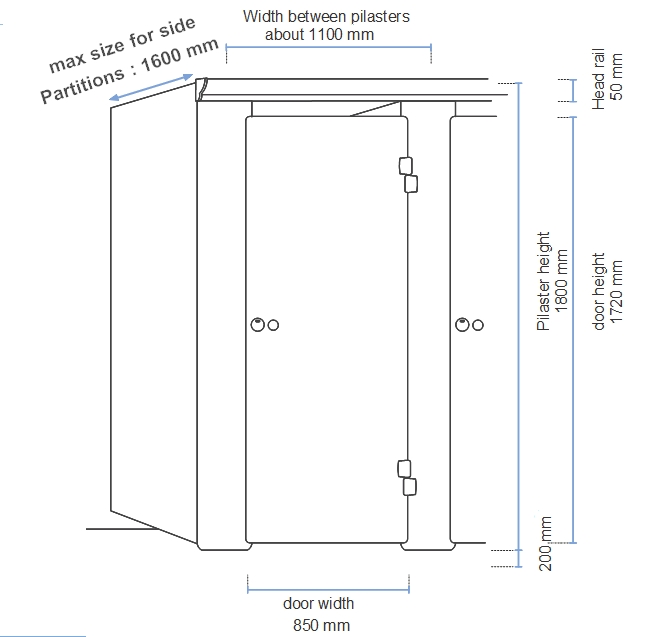

 Opale cubicle overview



Opal cubicle technical description :



Parts Illustrations Features
Doors, pilasters and side partitions pictogramme de la porte stratifie

Doors, side partitions and pilasters : 10 mm or 13 mm solid grade laminate panels.

Doors and pilasters

 pictogramme de la porte et du meneaux de façade pour la cabine stratifie Doors are covering pilasters once installed. Rounded edges.
Partitions Refends autoportant une seule pièce. Up to 1.60 m depth.
Head Rail Large grey head rail.
Hardware fittings etrier en inox laque gris Hardware fi ttings (3 U brackets and 4 angled brackets) grey lacquered stainless steel.
Adjustable foot

Pied réglable, tube laque 50 x 50 mm

Adjustable foot from 100 to 140 mm. 50 x 50 lacquered grey aluminium frame fixed on grey fiberglass nylon adjustable foot.

Screws visserie en inox Stainless steel screws (antitamper head). Invisible on front.
Pivot indicator bolt verrous pivotants interieur et exterieur Pivot indicator bolt. Emergency release. Other locks available as an option.
Doorknob bouton de porte 2 door knobs, fixed back to back on each door. Screwed internaly : invisible stainless steel screw. Clipped screw cover.
Hinges Paumelle en nylon arme de fibre de verre, axe en laiton 3 Hinges per door on Corail cubicles, 2 hinges per door for Granit cubicles. With or without spring back system.









Colour chart

Colour chart
Documents à télécharger
Descriptif technique (CCTP) Descriptif technique (CCTP)
Descriptif technique (CCTP) Descriptif technique (CCTP)
Fichier AUTOCAD (DWG) Fichier AUTOCAD (DWG)
Fiche produit (PDF) Fiche produit (PDF)
Fiche produit (PDF) Fiche produit (PDF)
Photothèque (JPG) Photothèque (JPG)
