Accueil > Cubicles > 10 mm Granit Cubicle

10 mm Granit Cubicle

 Print Print



  Made of 10 mm Solid Grade Laminate (SGL), Suffixe Granit cubicle is the perfect fit for all your changing rooms. They are suitable for wet conditions.

The Granit cubicle is a very robust product and has the best value for money in our product range.











Suffixe Granit cubicle is a robust and a budget solution for your projects.

Made of high quality materials, the Granit cubicle is suitable for every area while ensuring the required solidity, safeness and functionality.

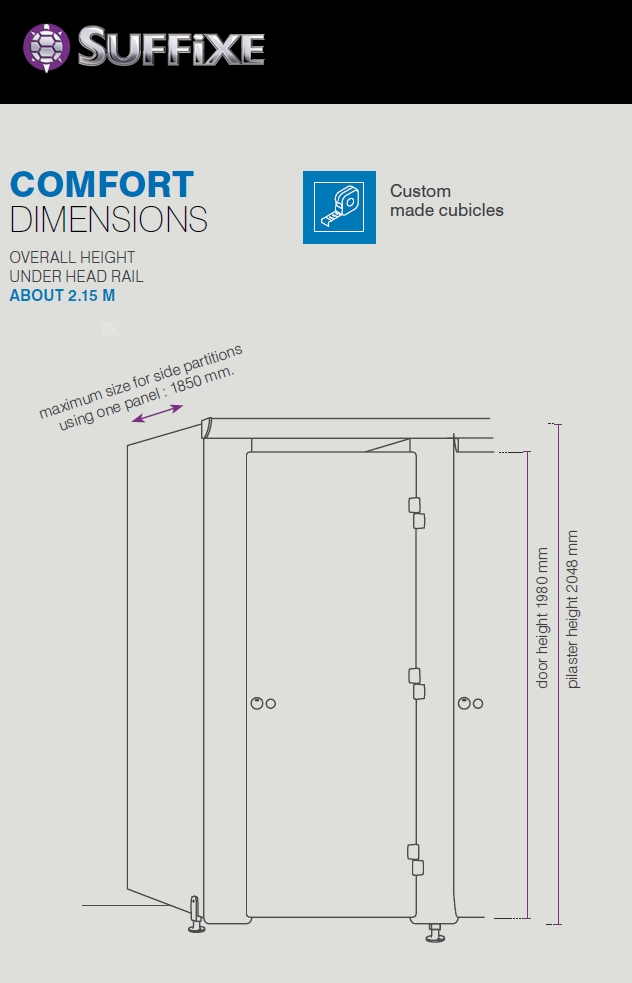

 See specifications and overiew of a standard cubicle



  STANDARD SIZES





Granit cubicle

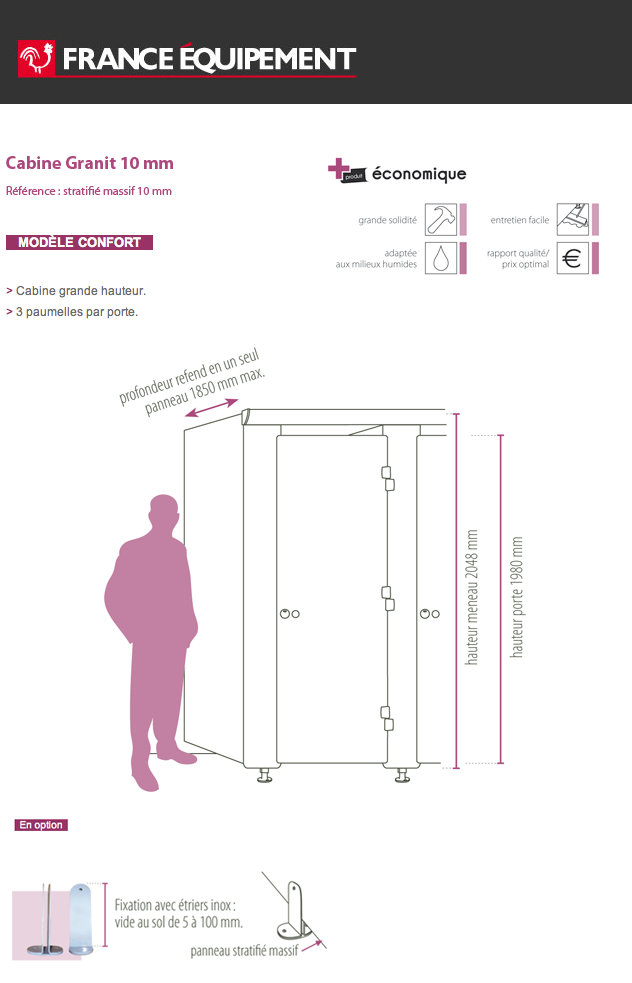

   See the comfort version





  Granit cubicle specifications :



Parts Illustrations Features
Doors, pilasters and side partitions pictogramme de la por<mce:script type=

Doors, side partitions and pilasters : 10 mm solid grade laminate panels for Granit cubicles.
Doors and pilasters pictogramme de la porte et du meneaux de façade pour la cabine stratifie

Doors are covering pilasters once installed. Rounded edges.

Side partition Refends autoportant une seule pièce.

Freestanding side partitions using one panel. Maximum depth : 2,05 m for standard cubicles and 1.85 m for comfort cubicles. Chamfered edges.
Head rail Aluminium enrobe de resine polyester cuite au four

Grey head rail, 50 mm x 30 mm, placed along pilasters and side partitions.
Hardware fittings etrier en inox laque gris

Hardware fi ttings (3 U brackets and 4 angled brackets) grey lacquered stainless steel.
Adjustable foot Pied verin en nylon arme de ibre de verre

Adjustable foot from 100 to 140 mm.
Pivot indicator bolt verrous pivotants interieur et exterieur

Pivot indicator bolt. Emergency release. Other locks available as an option.
Door knob bouton de porte

2 door knobs, fixed back to back on each door. Screwed internaly : invisible stainless steel screw. Clipped screw cover.
Hinges Paumelle en nylon arme de fibre de verre, axe en laiton

2 Hinges per door on Granit cubicles. With or without spring back system.



Colour chart

Colour chart
Documents à télécharger
Descriptif technique (CCTP) Descriptif technique (CCTP)
Descriptif technique (CCTP) Descriptif technique (CCTP)
Fichier AUTOCAD (DWG) Fichier AUTOCAD (DWG)
Fiche produit (PDF) Fiche produit (PDF)
Fiche produit (PDF) Fiche produit (PDF)
Photothèque (JPG) Photothèque (JPG)
