10 mm Crystal cubicle

References : Verre 10 mm

Crystal cubicles bring you a high end product solution for your changing rooms.

Our glass toilet and shower cubicles are made of high quality material : 10 mm glass and anodized aluminium fittings.

  STANDRD SIZES

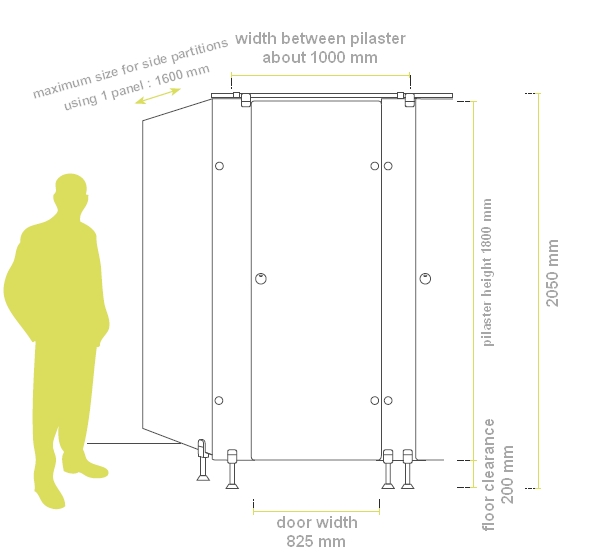

/// CABRI 600 sizes overview

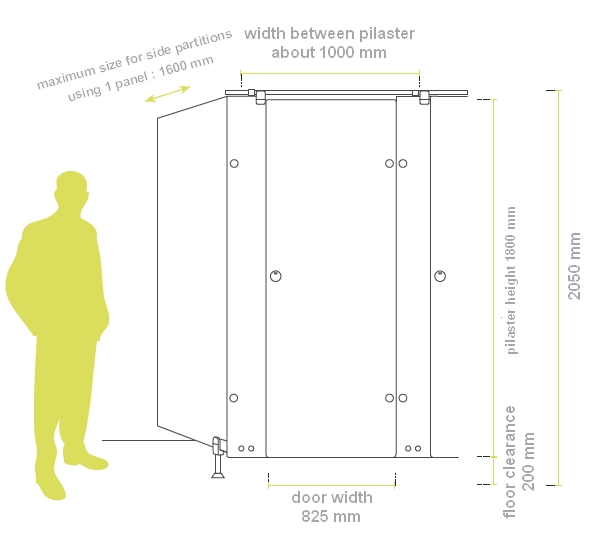

/// CABRI 700 sizes overview

Compared to Cabri 600 cubicles, Cabri 700 cubicle feet are concealed from the front.

Crystal Specifications

Parts	Illustrations	Features
Doors		Flat fascia, doors do not cover pilasters
Head rail		Horizontal anodized aluminium head rail , Ø 25 mm tubes, anodized aluminium mounting brackets that can be adjusted without drilling anything.
Side partitions		Freestanding side partition using 1 panel (max. depth 1,60 m). If above, a binding profile is used. Chamfered edges.
Pivot indicator bolt		Pivot alumium indicator bolt. Emergency release.
Hardware fittings		Glass to glass anodized aluminium hardware fittings.
Hinges		Anodized aluminium hinges. With or without spring back system.
Angle		Wall anodized aluminium angle (glass to wall). Screws are hidden. Screwed on the glass using aluminium rosace.
Adjustable foot		Anodized aluminium feet, 200 mm floor clearance.

Crystal colour chart
